3.4. Asset Management

In the Assets view you can see all the connected ASGARD agents. New assets will be placed under Asset Requests and need a manual approval before being able to connect to your ASGARD (for auto accept see Advanced Settings).

If the Duplicate Assets view is visible, you should try to remediate the issues in a timely manner, since this might cause unwanted side effects on the duplicate hosts.

Warning

Assets in the Duplicate Assets view indicate that one or more agents are running on multiple endpoints. This might be caused by cloning a system with an already installed ASGARD Agent. Undesirable side effects of duplicate assets are alternating hostnames and tasks that fail immediately.

For remediation please see Duplicate Assets Remediation

3.4.1. Asset Overview

Management of all endpoints registered with ASGARD can be performed in Asset Management. The assets will be presented as a table with an individual ASGARD ID, their IP addresses and host names.

By clicking the control buttons in the Actions column, you can start a new scan, run a response playbook, open a command line or browse the remote file system.

Note

Depending on the user's role, some of the control buttons may be disabled
The Run Scan button might be greyed out in new installations - this is because the ASGARD Management Center did not download the THOR packages yet. You can either wait for a few minutes, or see the chapter Updates of THOR and THOR Signatures, to trigger a download manually.

3.4.2. Asset Labels

Labels are used to group assets. These groups can then be used in scans or tasks.

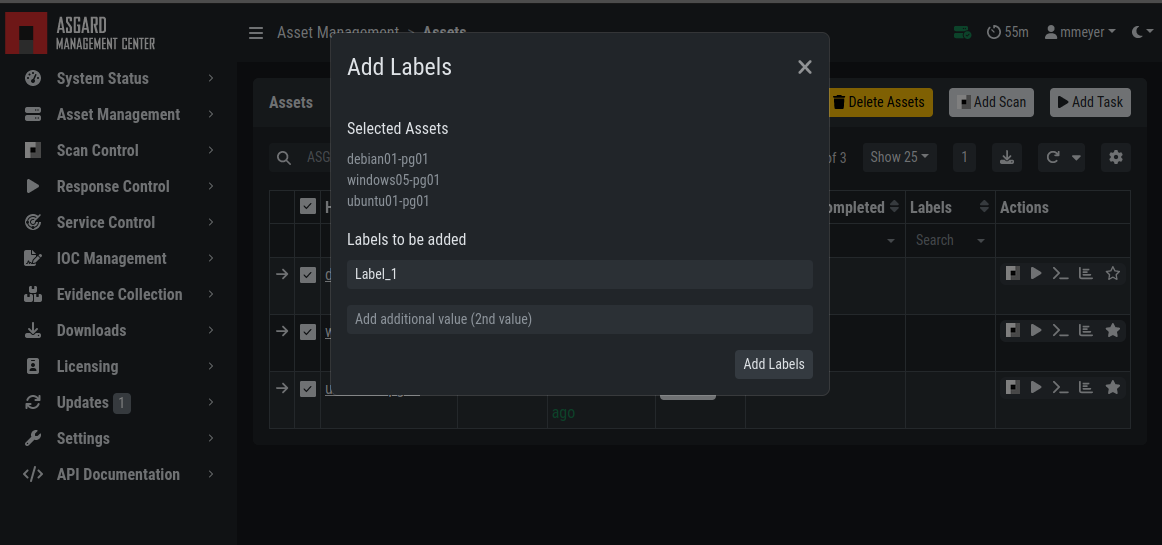

You can add multiple labels to an asset or a group of assets. This is done by selecting the particular assets in the left column, typing the label name (e.g. New_Label) and clicking the blue Add Labels button.

Note

Don't use labels with white space characters as it could cause issues in syncs with your Analysis Cockpit, exports/imports or other underlying legacy functions.

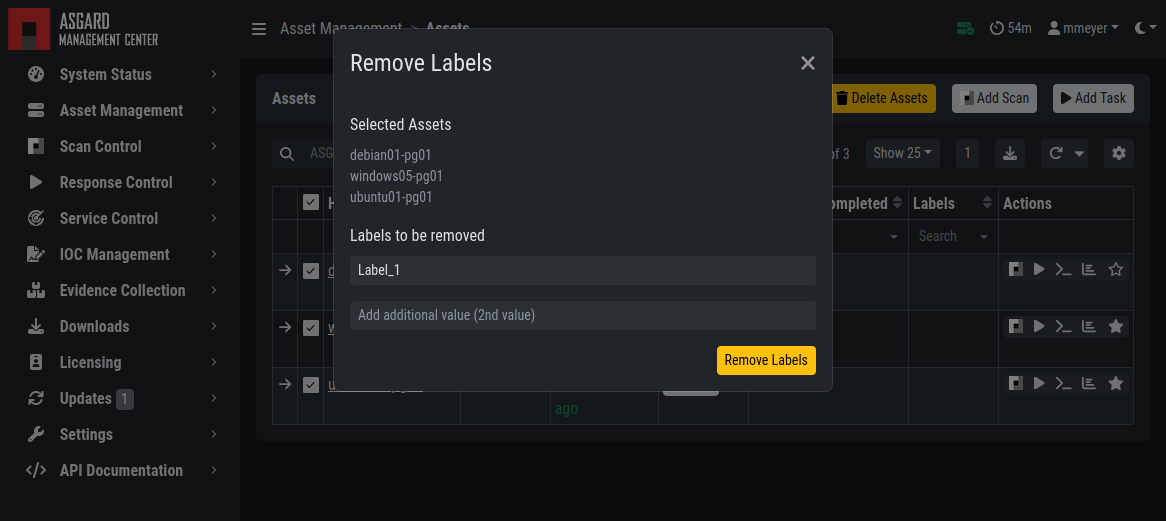

In order to remove labels, select your assets, click the yellow Remove Labels button and type the name of the label you want to remove for these assets.

The asset management section has extensive filtering capabilities, e.g. it is easy to select only Linux endpoints that have been online today and have a particular label assigned.

3.4.2.1. Export Asset List

The Import/Export Section allows you to export your assets to a CSV formatted file.

3.4.2.2. Import Labels

The import function allows you to add or remove labels on assets based on columns in the previously generated CSV formatted file.

Note

This function is not available in the Master ASGARD.

The import function processes the values in the columns Add Labels ... and Remove Labels ... only. In order to change labels, use the already exported list, add values in these columns and re-import it by using the Apply Labels from CSV button. Separate multiple labels with comma. Leading or ending white space characters will be stripped from the labels.

3.4.3. ASGARD Search Query

You can search for Assets in your Management Center with the ASGARD Search Query. This allows you to write more complex queries to search for assets. Additionally, this helps you to be more flexible with your scan/response tasks, since you can just specify a query and not set labels for all assets first. A good example of this might be if you want to scan a specific subnet every week, and a new agent is being deployed in this subnet. You don't have to think of all the labels or troubleshoot why scans are not being deployed. One example you could achieve this with is the following query:

system = "linux" and interfaces = "172.16.50.0/24"

This would run the task on all linux systems in the subnet 172.16.50.0/24.

The following operators are available:

Operator	Example
Equals	hostname = "win10-dev"
Equals	cpu_count = 1
Contains	hostname contains "win"
Begins With	hostname begins with "win"
Ends With	hostname ends with "dev"
Numerical Comparison	total_memory >= 4 GB
Numerical Comparison	last_seen < 3 days ago (assets that have not been seen since 3 days)
Numerical Comparison	last_seen > 1 hour ago (assets that have been seen in the last hour)
Numerical Comparison	last_scan_completed < 2022-08-17 (assets that have not been scanned since 2022-08-17)
Numerical Comparison	last_scan_completed < 2022-08-17 15:00:00 (assets that have not been scanned since 2022-08-17 15:00:00)
Numerical Comparison	last_scan_completed is never
Boolean	is_domain_controller is true
Boolean	nextping is true (shows all assets with Fast Poll enabled)
Not	not hostname contains "win"
Not	not hostname ends with "dev"
And	hostname contains "win" and not hostname ends with "dev"
Or	hostname begins with "dev" or hostname ends with "dev"
Nested	hostname ends with "dev" and (hostname contains "win" or hostname contains "lin")
Set / Not Set	labels is set (assets that have at least one label)
Set / Not Set	labels is not set (assets that have no labels)
Regular Expression	hostname matches "^[a-z0-9]{(0,6)}$"
Pattern	Use _ to match any single character and % to match an arbitrary number of characters, including zero characters.
Pattern	arch like "a__64" (matches amd64 and arm64, but not aarch64)
Pattern	arch like "%64" (all 64 bit systems, e.g. amd64, arm64, aarch64 or ppc64)
IP Range	interfaces = "172.28.30.0/24"

You can create simple or complex queries this way. You can group/separate queries with brackets:

(system = "linux" and interfaces = "172.28.30.0/24") or (system = "windows" and interfaces = "172.28.50.0/24")

(system = "linux" and interfaces = "172.28.30.0/24" and labels = "my-label") or labels = "robot-test"

The following keys for the asset query are available:

Key	Column Name
arch	Arch
client	Agent Version
client_sc	Service Controller Version
first_seen	First Seen
fqdn	FQDN
hostname	Hostname
id	ID
interfaces	Network Interfaces
is_domain_controller	DC
labels	Labels
last_scan_completed	Last Scan Completed
last_seen_agent	Last Seen Agent
last_seen	Last Seen
last_seen_sc	Last Seen Service Controller
nextping	Fast Poll
ping_interval	Poll Interval
system	OS
total_memory	Total Memory
uptime	Uptime
version	OS Version

Hint

You can see which query-name a field has by enabling the column in your asset view and clicking into the query text field:

../_images/asgard_asset_query_fieldnames.png

The ASGARD Search Query is the preferred tool to manage scans and assets. If you are using the Analysis Cockpit and need to labels, you can still use them.

3.4.4. Asset Migration

Hint

You have to enable the option Show Response Control Advanced Tasks in the Settings > Advanced section of your ASGARD Management Center to allow Asset Migration.

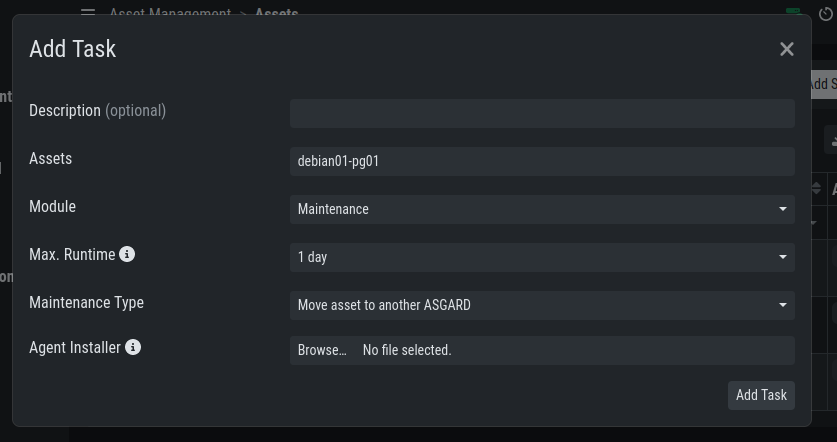

You can move an asset from one Management Center to another via the Maintenance Module of the Response Control. To do this, navigate to Assets and select the assets you want to migrate. Alternatively you can navigate to Response Control and add a new task. You can now click the Add Task button to open the Task Menu. Choose the Maintenance module and then the Move asset to another ASGARD Type. You have to upload an agent installer from the ASGARD you want to migrate the asset to.

Note

The target OS or Arch of the installer doesn't matter, we will only use the installers configuration data for the migration.

The task will fail if the migrated asset is unable to communicate with the new Management Center. In this case, the asset will remain on the Management Center which issued the migration task. Only the asset will be migrated (it shows up as a brand new asset on your new Management Center), no scan or response tasks and also no logs will be migrated.

3.4.5. Delete Assets

Deleting assets will remove the assets from the Active Only asset view and will invalidate the authentication for those assets.

To delete an asset, go to the Assets View and mark the assets you want to delete. Click the Delete Assets Button on the top right corner. Confirm that you want to delete the assets.

To see all the deleted assets, change your view from Active Only to Deleted Only.

Warning

Deleted assets can no longer communicate with the ASGARD. Please use with caution. This cannot be undone, you have to manually fix the asset.
